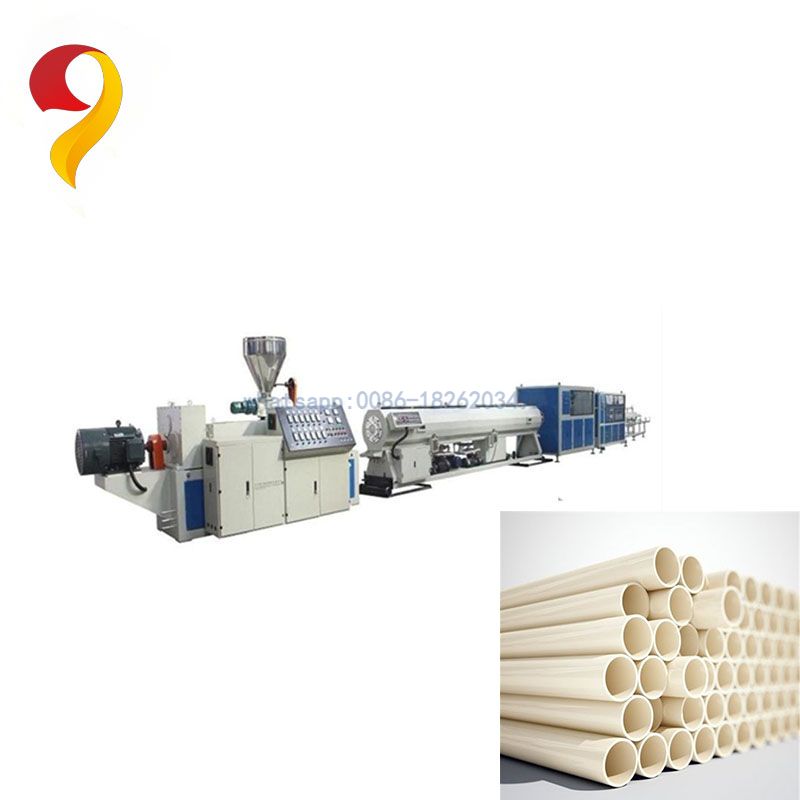

16-630mm Pvc Pipe Extrusion Making Machine

PVC double-pipe production line

--two cavities PVC pipe extrusion line

The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are

combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.

PVC four cavities production line

--four cavities PVC pipe extrusion line

Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time on one machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.

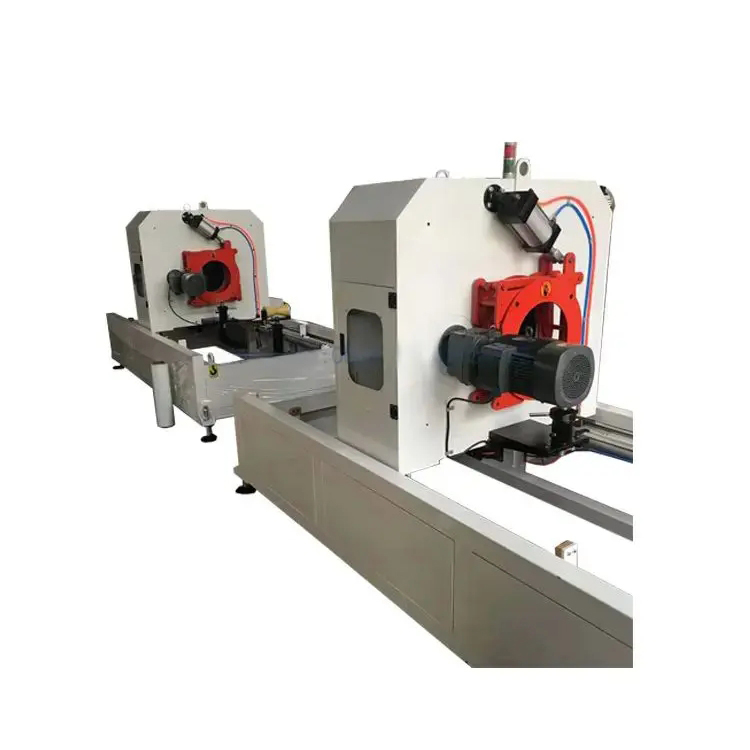

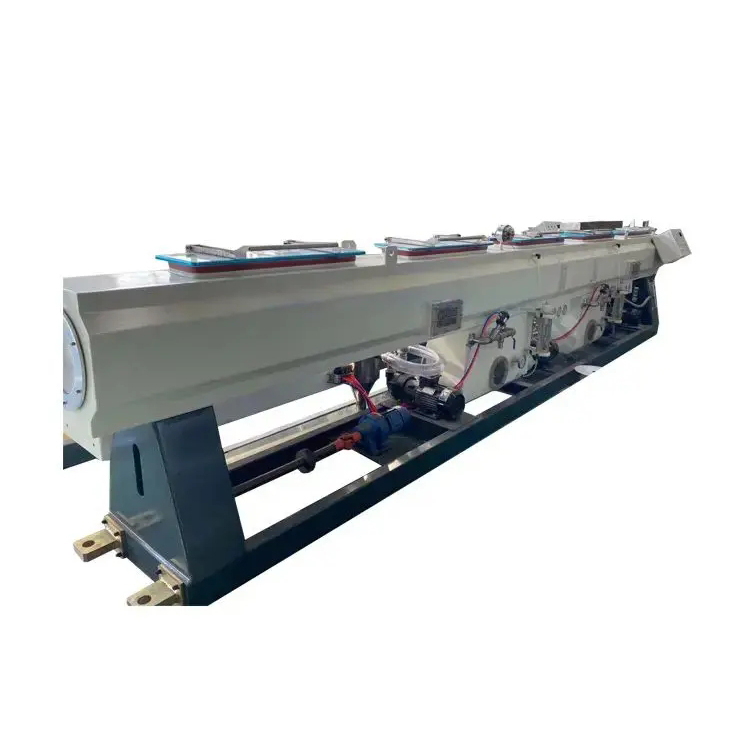

The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling calibration tank,4 station haul off,4 station cutter and 4 station tipping table.

details:
