Pvc Pipe Making Machine Price

PVC pipe making machine can produce various diameters and thickness pipe .

PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.

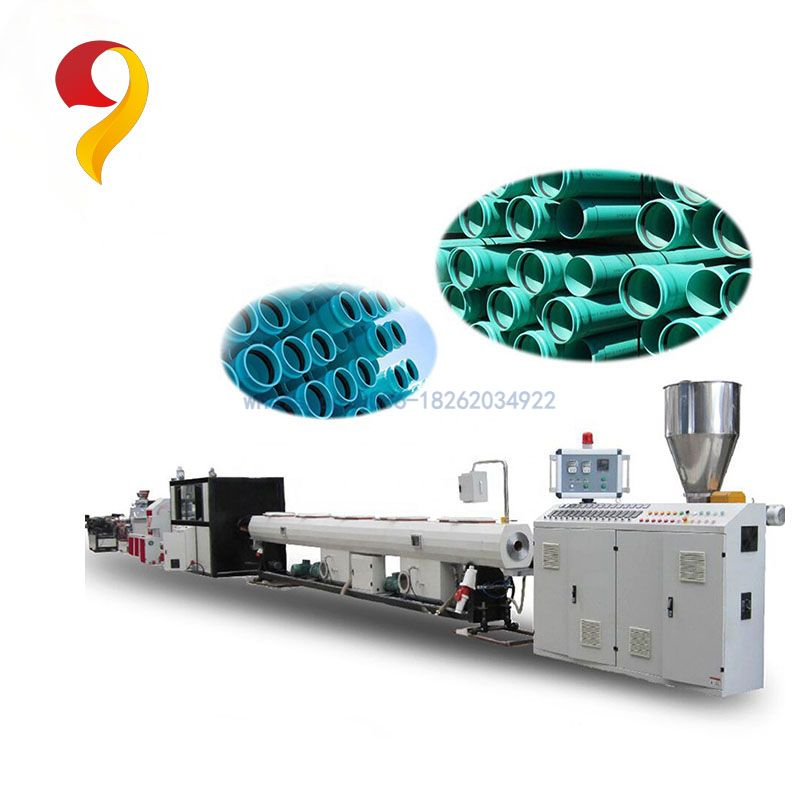

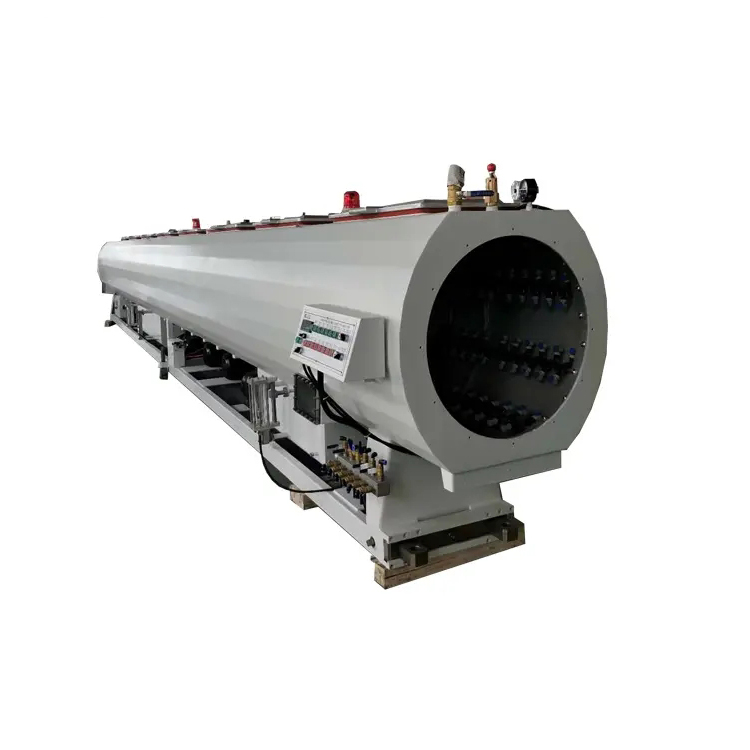

The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.

And PVC pipe making machine line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

The PVC Pipe Production line is developed with the advanced technology of West Europe by our company. The main machine SJSZ65/132 conical twin screw extruder, it is special design suit for the high speed production, Total capacity about 15T per 24 hours, save energy about 50%。

Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing,cable laying etc.

This line is composed of conical twin screw extruder,Vacuum calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your

requirements.

PVC double-pipe production line

--two cavities PVC pipe extrusion line

The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ55/120 or SJSZ65/132 conical twin screw extruder is equipped with double-tube single control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine are

combined with the front double calibration technology to make operation more flexible let you enjoy economic benefit which is brought by separate-control double tube extruding.

PVC four cavities production line

--four cavities PVC pipe extrusion line

Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time on one machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.

The whole line is composed of conical twin-screw extruder 65mm,4 cavity mould,4 cavity coling calibration tank,4 station haul off,4 station cutter and 4 station tipping table.

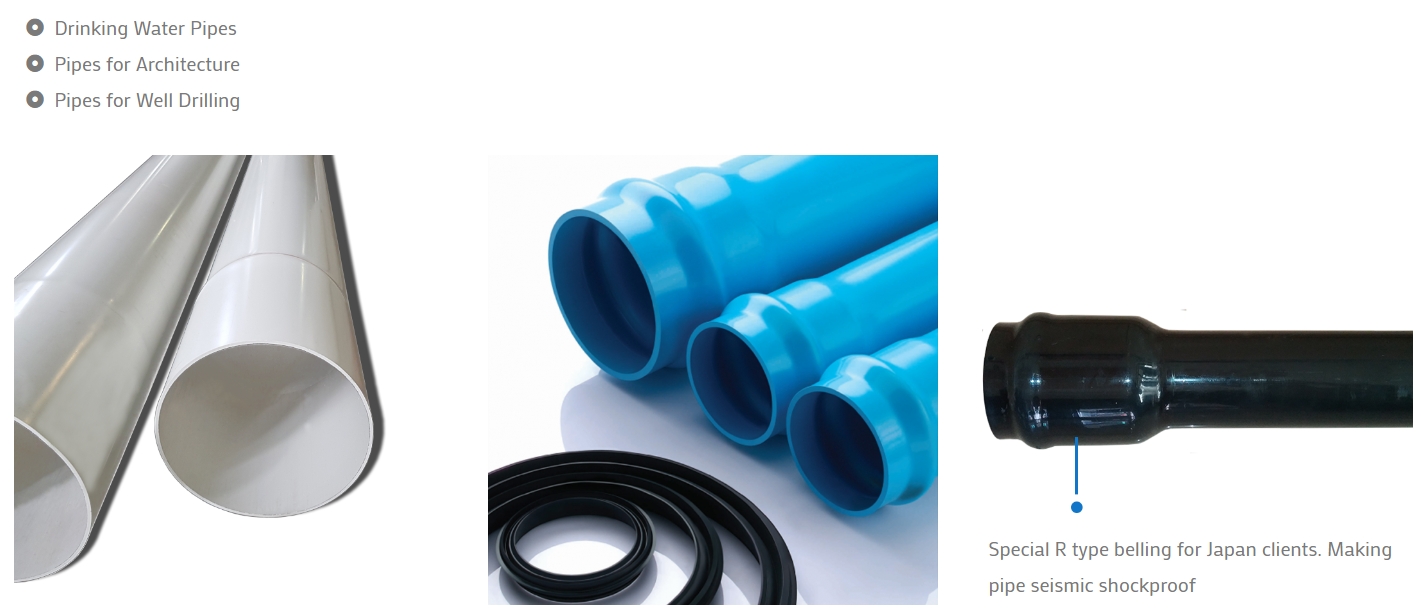

Final product:

Features of pvc pipe extruder machine:

1.  Ensuring long-time stable operation & long service life

2. Compact structure, low noise, high bearing capacity, high transmission efficiency, ensuring long-time stable operation

3. Heating is controlled by Solid State Relay (S.S.R), realizing stable heating; (SSR) no spark & no noise improve safe production.

4. Siemens PLC controlling system with reliable technology, automatic and intelligent functions for centralized control and monitoring extrusion lines, which helps easy operation.
