Hopper
The hopper is the entry point for plastic bottles. It is usually made of metal or durable plastic and has a wide opening to accommodate bottles of different sizes and shapes. The hopper's design allows for easy loading of bottles by hand or through an automated conveyor system. For example, in a recycling plant, workers can simply dump a batch of collected plastic bottles into the hopper.

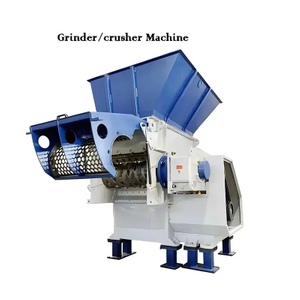

Crushing Chamber
This is the heart of the machine. It contains a set of rotating blades or hammers that are responsible for breaking down the plastic bottles. The blades are typically made of hardened steel to withstand the impact and abrasion caused by the bottles. The shape and arrangement of the blades can vary depending on the machine's design and intended use. Some crushers have a horizontal rotor with multiple blades that swing outwards to smash the bottles, while others may have a vertical shaft with hammers that rotate and strike the bottles from different angles.
Motor
The motor provides the power to drive the rotating blades or hammers in the crushing chamber. The power of the motor is an important factor in determining the machine's crushing capacity. Motors can range from small, fractional - horsepower motors for home - use crushers to large, industrial - strength motors that can handle a high volume of bottles. The speed of the motor also affects the crushing efficiency. A higher - speed motor can generally crush bottles more quickly, but it may also generate more noise and wear on the machine.
Screen or Sieve
A screen or sieve is usually installed at the bottom of the crushing chamber. Its purpose is to control the size of the crushed plastic pieces. Only pieces that are small enough to pass through the screen openings will be discharged from the machine. The size of the screen openings can be adjusted depending on the specific requirements of the recycling process. For example, if the crushed plastic is to be used for injection molding, a finer - mesh screen may be used to produce smaller, more uniform particles.
Discharge Outlet
The discharge outlet is where the crushed plastic pieces are expelled from the machine. It can be connected to a conveyor belt, a storage bin, or a collection bag. The design of the discharge outlet may include features such as a chute or a spout to direct the flow of the crushed plastic in a controlled manner.
Single - Shaft Crusher
In a single - shaft crusher, there is a single rotating shaft with blades or hammers attached. The shaft rotates at a high speed, and the bottles are crushed as they come into contact with the moving blades. This type of crusher is relatively simple in design and is suitable for small - to - medium - sized recycling operations or home use. It can handle a limited number of bottles at a time and may have a lower crushing capacity compared to other types.
Double - Shaft Crusher
A double - shaft crusher has two parallel rotating shafts, each equipped with blades or hammers. The shafts rotate in opposite directions, creating a shearing and crushing action on the bottles. This design allows for more efficient crushing and can handle a larger volume of bottles. Double - shaft crushers are often used in industrial - scale recycling plants where a high throughput of plastic bottles is required.
Hammer Crusher
Hammer crushers use a set of heavy - duty hammers that rotate around a central axis. The hammers have a high - impact force and are effective in breaking down even large and thick - walled plastic bottles. They are known for their powerful crushing ability and are suitable for handling bottles that are difficult to crush with other types of crushers.
Recycling Centers
Plastic bottle crusher machines are essential in recycling centers. They reduce the volume of plastic bottles, making it more convenient to store and transport them to the next stage of the recycling process. By crushing the bottles, the centers can handle a larger quantity of bottles in a limited space.
Manufacturing Facilities
In manufacturing plants that produce recycled plastic products, the crusher machines are used to prepare the raw material. The crushed plastic from the machines can be further processed into pellets or other forms suitable for injection molding, extrusion, or other plastic - processing methods.
Home Use
Some smaller - scale plastic bottle crusher machines are designed for home use. These machines allow homeowners to recycle their own plastic bottles more effectively. The crushed plastic can be stored and taken to a local recycling facility or used for DIY projects such as making small plastic crafts.
