water supply pipe making machine

A water supply pipe - making machine is a piece of equipment used to manufacture pipes for the transportation of water. Here's a detailed look:

• Plastic Pipe - making Machines

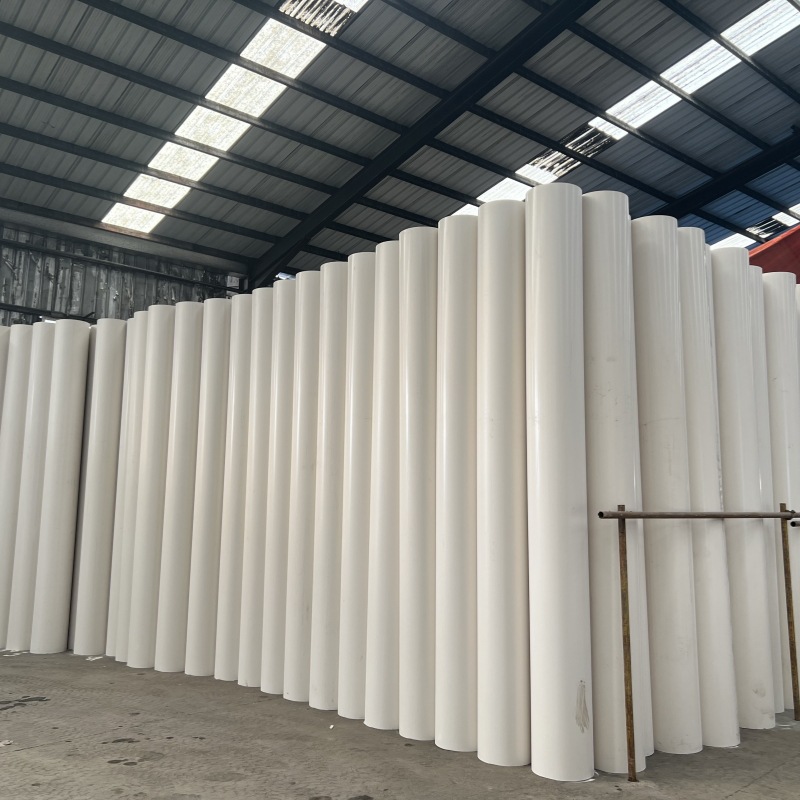

• PVC (Polyvinyl Chloride) Pipe - making Machines: PVC is a popular material for water supply pipes due to its durability, chemical resistance, and relatively low cost. The machine for making PVC pipes usually involves an extrusion process. The raw PVC material in the form of pellets is fed into a hopper. The pellets are then heated and melted through a barrel with a screw conveyor. The molten PVC is forced through a die, which shapes it into a pipe. The pipe is then cooled and cut to the desired length. For example, in a typical small - scale PVC pipe - making setup, the extrusion speed can range from a few meters per minute to tens of meters per minute, depending on the diameter and wall thickness of the pipe.

• PE (Polyethylene) Pipe - making Machines: PE pipes are known for their flexibility and excellent resistance to impact and corrosion. The manufacturing process is similar to that of PVC pipes in some ways. However, the melting temperature and the characteristics of the extrusion process may vary. For high - density polyethylene (HDPE) pipes, the machine needs to operate at a higher temperature to ensure proper melting and extrusion. The die design for PE pipes also needs to take into account the material's tendency to expand and contract during cooling.

• Metal Pipe - making Machines
• Steel Pipe - making Machines: For steel water supply pipes, the manufacturing process is more complex. There are two main methods: seamless pipe making and welded pipe making. In seamless pipe production, a solid billet of steel is heated and pierced to form a hollow tube. This process requires high - temperature furnaces and specialized piercing mills. Welded pipe - making machines, on the other hand, start with steel strips. The strips are formed into a cylindrical shape and then welded together, usually by high - frequency induction welding or submerged arc welding. The welded pipes are then subjected to various finishing processes such as heat treatment, sizing, and surface treatment to ensure the quality of the pipe for water supply.
• Copper Pipe - making Machines: Copper pipes are favored for their excellent thermal conductivity and corrosion resistance in some water supply applications. The manufacturing process often involves drawing and annealing. The raw copper material is drawn through a series of dies to reduce its diameter and increase its length to form a pipe. Annealing is a heat - treatment process that softens the copper and relieves internal stresses, improving the pipe's mechanical properties.

• Extrusion Unit (for Plastic Pipes)

• Hopper: This is where the raw material (plastic pellets) is stored and fed into the machine. It has a controlled feeding mechanism to ensure a steady supply of material to the extrusion barrel.

• Extrusion Barrel and Screw: The barrel is heated to melt the plastic, and the screw conveyor transports the molten material forward. The screw design can vary depending on the type of plastic and the required output. For example, a barrier screw can be used to improve the mixing of additives and the melting efficiency.

• Die Head: It determines the shape and size of the pipe. The die can be adjusted to produce pipes of different diameters and wall thicknesses. There are various types of die heads, such as spiral mandrel dies, which are used to ensure an even distribution of the material around the circumference of the pipe.

• Forming and Welding Units (for Metal Pipes)

• Roll Forming Machine (for Welded Metal Pipes): For metal pipes made from strips, this machine bends the strip into a circular shape. It consists of a series of rollers that gradually shape the strip. The rollers' configuration and pressure can be adjusted according to the pipe diameter and the thickness of the metal strip.

• Welding Equipment: As mentioned earlier, high - frequency induction welding or submerged arc welding equipment is used to join the edges of the formed metal strip. The welding parameters, such as welding current, voltage, and speed, need to be carefully controlled to ensure a high - quality weld without defects.

• Cutting and Finishing Units

• Cutting Device: After the pipe is formed, it needs to be cut to the desired length. For plastic pipes, a flying saw or a hot - wire cutter can be used. The flying saw is a high - speed circular saw that moves along with the pipe during cutting to ensure a clean cut. For metal pipes, a cold saw or a plasma cutter may be used, depending on the pipe material and thickness.

• Surface Treatment Equipment: Some pipes may require surface treatment to improve their corrosion resistance or appearance. For example, plastic pipes may be embossed with markings or have a UV - resistant coating applied. Metal pipes may be galvanized, painted, or coated with other corrosion - protective layers.

• Applications

• Residential Water Supply: These machines produce pipes that are used to supply clean water to homes. The pipes need to meet certain standards for pressure resistance and water quality safety. For example, in a single - family house, the water supply pipes are usually of a smaller diameter (ranging from 1/2 inch to 1 inch in diameter for most domestic applications) and are made of materials like PVC or copper.

• Commercial and Industrial Water Supply: Larger - diameter pipes are required for commercial and industrial settings to handle higher water volumes. The pipes may be made of steel or HDPE and are used to supply water to buildings, factories, and other large - scale facilities. In a large - scale industrial plant, pipes with diameters of several inches to feet may be needed to transport water for cooling systems, process water, or fire - fighting systems.

• Quality and Standards Considerations

• The water supply pipe - making machines need to produce pipes that comply with relevant national and international standards. For example, in the United States, the ASTM (American Society for Testing and Materials) standards specify the requirements for the dimensions, material properties, and performance of water supply pipes. The machines should be able to produce pipes with consistent wall thickness, accurate diameters, and proper material integrity to ensure that the pipes can withstand the required water pressure and have a long service life without leaking or corroding.
