jiuqiang
The PVC Pipe Production line is developed with the advanced technology of West Europe by our company. The main machine SJSZ65/132 conical twin screw extruder, it is special design suit for the high speed production, Total capacity about 15T per 24 hours, save energy about 50%。
Φ20-Φ630 series PVC pipe extrusion machine line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industries such as agricultural and constructional plumbing,cable laying etc.

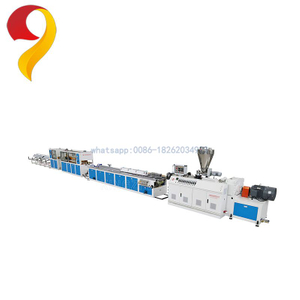

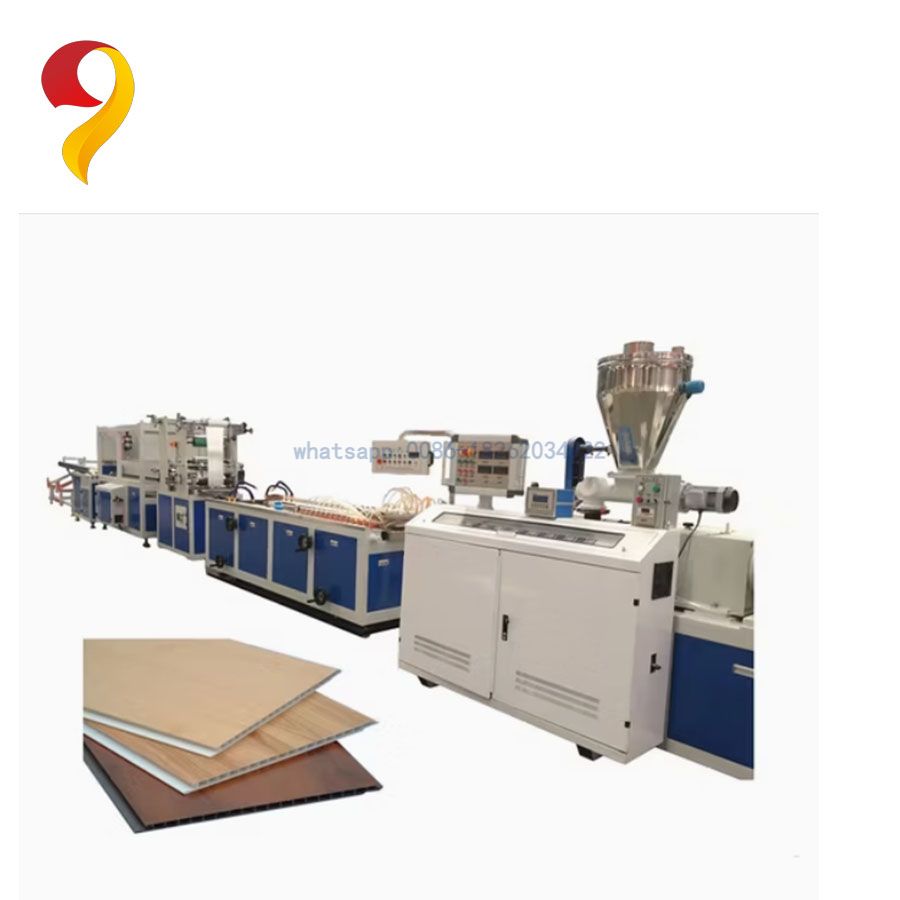

This line is composed of conical twin screw extruder,Vacuum calibration tank,haul off,motors,cutter and stacker etc. The extruder and haul off methods are two-claw,three-claw four-claw,six-claw,eight-claw,ten-claw,twelve claw etc. You may choose saw blade cutting type or planetary cutting type. It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your
requirements.
Details: PVC extruder machine final products:

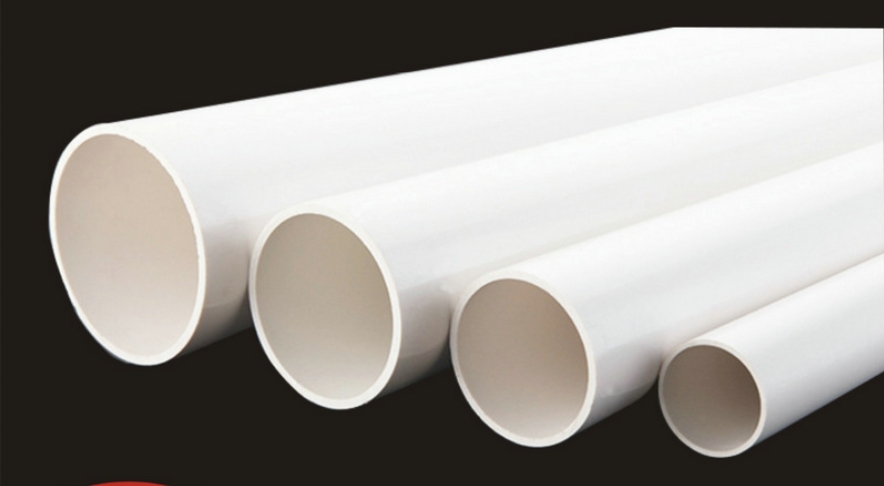

PVC pipe:

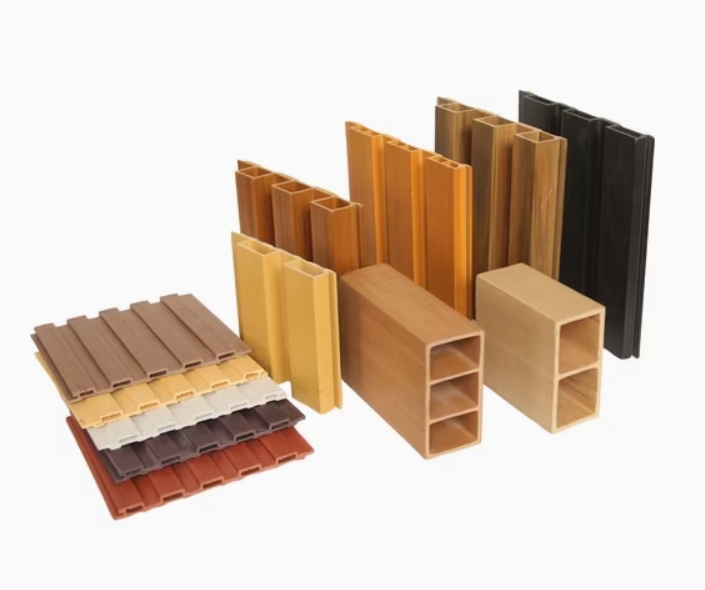

PVC profile:

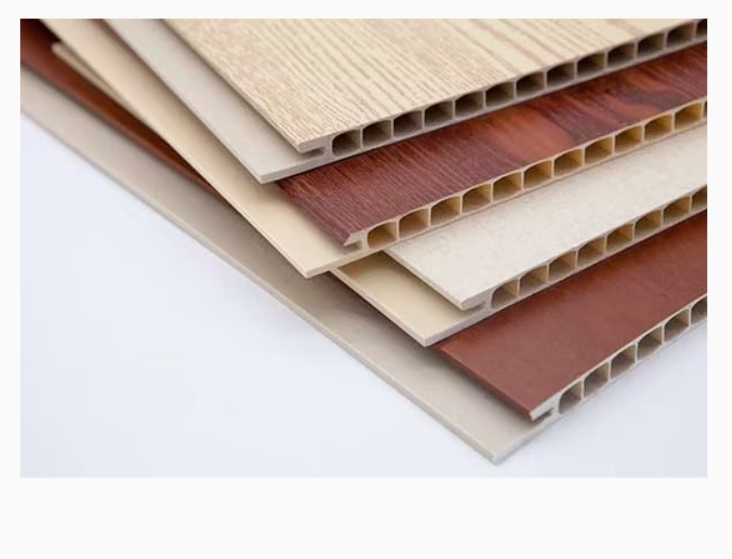

PVC panle:
Model/Item | Pipe range | Extruder | Max output | Max speed |
PVC-50*2 | 16-50mm | SJSZ65/132 | 250kg/h | 10 m/min |
PVC-63 | 16-63mm | SJSZ51/105 | 150 kg/h | 10 m/min |
PVC-110 | 50-110mm | SJSZ55/110 | 180 kg/h | 10 m/min |
PVC-160 | 63-160mm | SJSZ65/132 | 300 kg/h | 5 m/min |
PVC-250 | 110-250mm | SJSZ80/156 | 400 kg/h | 3.5 m/min |
PVC-315 | 160-315mm | SJSZ80/156 | 400 kg/h | 3 m/min |
PVC-450 | 250-450mm | SJSZ92/188 | 700 kg/h | 1.5 m/min |
PVC-630 | 315-630mm | SJSZ92/188 | 700 kg/h | 0.9 m/min |
