SJ 75/33
jiuqiang
PPR pipe stands for Polypropylene Random Copolymer pipe. It is a type of plastic pipe that has become very popular in various plumbing and piping applications. Here are some key aspects about it:
· Chemical Composition: PPR is made from polypropylene with a random copolymer structure. This gives it certain desirable properties compared to other plastics.
· High Temperature Resistance: It can withstand relatively high temperatures, typically up to around 95°C (203°F) continuously, which makes it suitable for hot water supply systems. It doesn't deform or degrade easily under normal hot water usage conditions.
· Corrosion Resistance: PPR pipes are highly resistant to corrosion from various chemicals commonly found in water, such as acids and alkalis. This ensures the longevity of the piping system and maintains the quality of the fluid being transported.
· Good Toughness: They have a reasonable level of toughness, which means they can resist impacts and external forces to some extent without cracking or breaking easily.
2. Polypropylene PPR Pipe Making Extrusion Line Applications
PPR pipes can be found in the following applications:
Water supply, sewage systems, gas supply (solvent-welded only), heat insulation, cold supply and cooling technology. Placing them underground is also possible due to their chemical resistance. PPR piping is commonly used within plumbing infrastructure for several reasons including its energy efficiency.
Besides that, it has a very long life span. It does not rust or corrode because of the material used, which is why it lasts so long, even when buried underground. The materials needed to build PPR pipes are readily available which makes them cheaper than other pipe materials such as copper.
A PPR pipe can hold its shape, which means it does not require a lot of space between joints, as would be the case with other pipes such as those made from PVC. In addition, it is not toxic, meaning it can be safely used in drinking water supply systems.

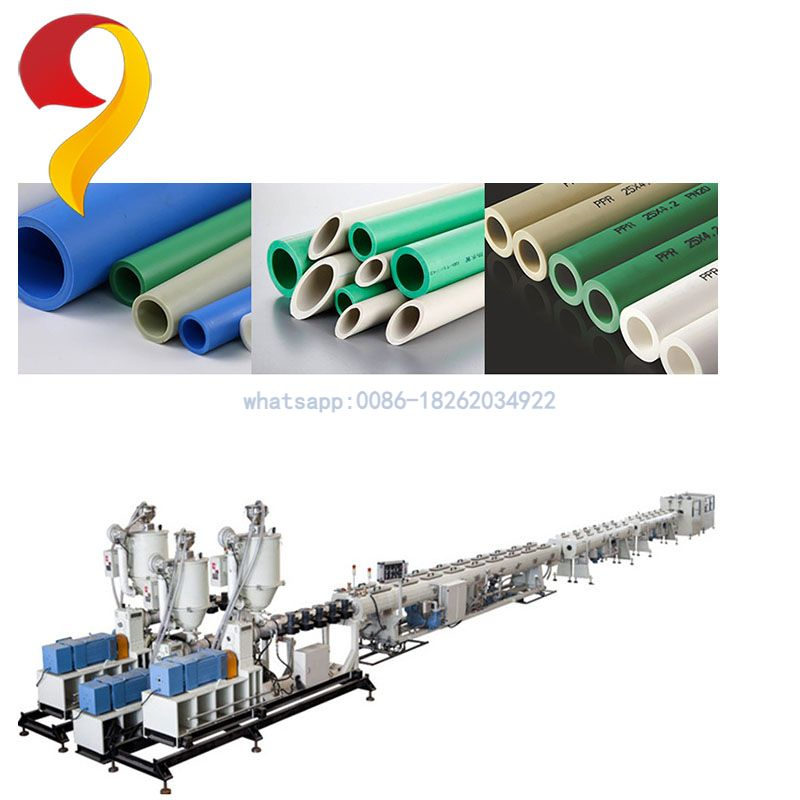

Polypropylene PPR Pipe Making Extrusion Line Detail Specification
| Feeder | • To feed material into extruder |
| Extruder | • World famous brand electrical component such as Siemens, Schneider, ABB etc; • High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface. |
| Die head | • 40Cr material • Complete set include extrusion die head, Slotting & water ring type calibration sleeve • Apply to PE/PP, co-extrusion, multi-layers co-extrusion etc |
| Vacuum calibration tank | • Include full set of vacuum and water pump • length from 6m-9m |
| Haul off | • Upper and lower caterpillar is driven separately by the frequency inverter • Fast change type pads |
| Cutter | • Tracking cutter or Non-dust cutter, Blade rotates around pipe and cut off pipe with smooth surface. • Synchronous control |
| Stacker | •Stainless steel 304 as touching material •Discharge driving by air cylinder |
_____________________________________________________________________________________________________________________
| Model | Diameter(mm) | Extruder | Hauling Speed(m/min) | Max.Output(kg/h) | Installed Power(kw) |
| FST-PE110 | 20-110 | 75/30 | 3-12 | 250 | 120 |
| FST-PE160 | 75-160 | 75/33 | 2-10 | 350 | 160 |
| FST-PE250 | 75-250 | 90/30 | 2-6 | 450 | 200 |
| FST-PE315 | 110-315 | 90/33 | 1.5-4 | 500 | 250 |
| FST-PE400 | 160-400 | 100/33 | 1-3 | 550 | 280 |
| FST-PE500 | 200-500 | 120/33 | 0.5-2.5 | 700 | 300 |
| FST-PE630 | 250-630 | 120/33 | 0.5-2 | 900 | 400 |
| FST-PE800 | 400-800 | 150/33 | 0.5-1 | 1200 | 500 |
