How to choose the appropriate water supply pipe making machine?

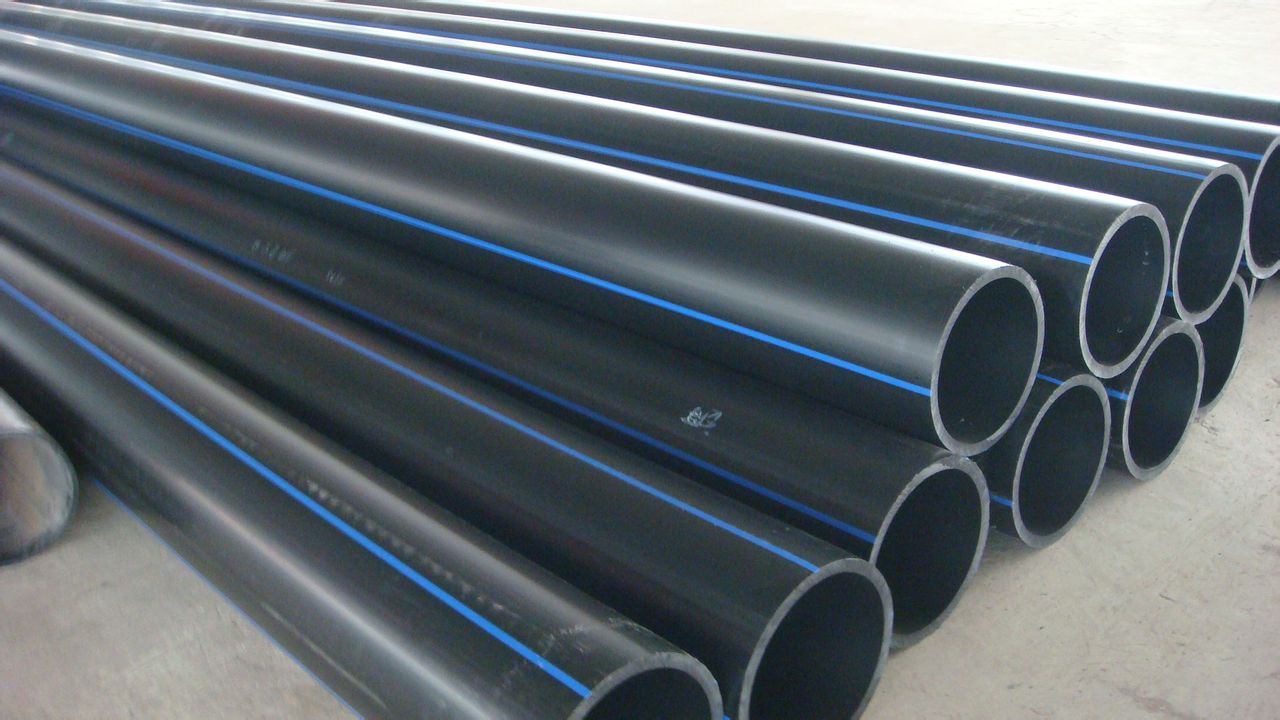

Plastic Pipes: If you plan to produce plastic water supply pipes, such as PVC or PE, you need to choose a machine suitable for plastic extrusion. For PVC pipes, a common extrusion machine with a specific screw design and heating system for PVC pellets is required. For PE pipes, especially HDPE, the machine should be able to handle the higher melting temperature and different rheological properties of the material. For example, a machine with a barrier screw and a more precise temperature control system would be beneficial for better plasticizing and mixing of the PE material3.
Metal Pipes: For metal water supply pipes like steel or copper, the manufacturing process is different. Steel pipe making machines can be either seamless or welded. Seamless pipe making requires advanced equipment like piercing mills for heating and piercing solid billets. Welded pipe making machines involve forming metal strips into a cylindrical shape and then welding them, which requires precise control of the welding process, such as high-frequency induction welding or submerged arc welding equipment. Copper pipe making often involves drawing and annealing processes, so machines with appropriate drawing dies and annealing furnaces are needed.
Small-scale Production: If your production volume is relatively low, for example, for a small local business or custom orders, a smaller and more compact pipe making machine with a lower production rate may be sufficient. These machines are usually more affordable and easier to operate and maintain. They can produce a few meters to tens of meters of pipe per hour, depending on the diameter and type of pipe.
Large-scale Production: For large manufacturing plants or companies supplying pipes for major projects, high-capacity pipe making machines are essential. These machines can produce hundreds of meters or even more of pipe per hour. They often come with advanced automation features, such as automatic material feeding, continuous extrusion or forming, and high-speed cutting systems to meet the high production demands. However, they also require a larger investment in terms of equipment cost, space, and maintenance.
Diameter Range: The chosen machine should be able to produce pipes within the required diameter range. Some machines are designed for small-diameter pipes, typically used in residential or light commercial applications, such as pipes with diameters ranging from 1/2 inch to 4 inches. Others are capable of manufacturing large-diameter pipes, which are necessary for industrial or municipal water supply systems, with diameters of several inches to several feet. Make sure the machine's die heads or forming mechanisms can be adjusted or replaced to accommodate different pipe diameters.
Wall Thickness: Different applications may require pipes with varying wall thicknesses. The machine should have the flexibility to produce pipes with the specified wall thickness range accurately. This may involve adjusting the extrusion or forming parameters, such as the speed of material feeding, the pressure in the die, or the welding current and speed for metal pipes, to ensure consistent and precise wall thickness control.
Dimensional Accuracy: The produced pipes must meet strict dimensional requirements for proper fitting and connection in the water supply system. The machine should be able to maintain a high level of dimensional accuracy in terms of pipe diameter, roundness, and straightness. Look for machines with precise extrusion or forming mechanisms, stable conveying systems, and accurate cutting devices to ensure that the pipes have consistent dimensions throughout their length3.
Material Homogeneity: For plastic pipes, the machine should ensure uniform melting and mixing of the raw material to achieve homogeneous pipe properties. In metal pipes, proper welding or forming processes should result in a uniform structure without defects such as porosity, cracks, or incomplete fusion. This requires high-quality components in the machine, such as well-designed screws, dies, welding electrodes, and forming rollers, as well as advanced control systems to monitor and adjust the manufacturing process parameters.
User-friendly Interface: The machine should have an intuitive and easy-to-use control panel or interface that allows operators to set and adjust parameters such as extrusion speed, temperature, pressure, etc. easily. Clear instructions and real-time monitoring of the production process can help reduce operator errors and improve production efficiency3.
Maintenance Requirements: Consider the frequency and complexity of maintenance tasks. Machines with simpler structures and fewer moving parts generally require less maintenance. Look for machines that are easy to clean, lubricate, and replace worn components. Additionally, the availability of spare parts and technical support from the manufacturer is crucial for minimizing downtime in case of machine breakdowns.
Initial Investment: The cost of the pipe making machine includes the purchase price, installation costs, and any additional equipment or accessories required. Compare different models and brands to find a machine that offers the best value for money within your budget. However, don't sacrifice quality and performance for a lower price, as a poor-quality machine may lead to higher production costs in the long run due to frequent breakdowns, low productivity, and inconsistent product quality.
Operating Costs: Operating costs include energy consumption, raw material waste, and labor costs. Choose a machine that is energy-efficient to reduce electricity bills. A machine with precise control systems can also minimize raw material waste by producing pipes with accurate dimensions and consistent quality, saving on material costs. Additionally, consider the labor requirements for operating and maintaining the machine. A more automated machine may require fewer operators, reducing labor costs over time45.
Return on Investment: Estimate the potential return on investment by considering the market demand for the pipes you plan to produce, the selling price, and the production capacity of the machine. A high-quality, efficient machine that can produce a large volume of high-quality pipes at a competitive cost is more likely to generate a higher return on investment in the long term.
