Single Shaft Shredder Machine

Single shaft shredders Features:

1.Single shaft shredders are able to efficiently recycle large quantities of refractory materials such as wood, large hard and solid materials (waste blocks produced by extruders), plasticsContainers, barrels, plastic tubes, films, fibers, paper, etc.

2It has the following advantages: solid design, low noise, low power consumption, and can work for a long time.

3. The output scrap size can be adjusted to a minimum of m 16 mm (by ad justing the screen). If the output scrap has no size requirements, no screen is required. The 4- knife shaft rotates at low speed.

4. This machine is controlled by PLC and the control loop is selective (if overloaded, the rotor will reverse to avoid feeding blockage).

Single shaft shredders Applications:

1. Metal: Aluminum can bundles, steel drums, car shells, colored steel tiles, bicycles, copper and aluminum radiators, oil filters, waste wires, cables, aluminum composite plastic plates, steel wire ropes, gas tanks, iron filings, zipper cans , engine box, paint bucket, etc.

2. Plastics: plastic pallets, plastic barrels, plastic films, used electrical appliance casings, garbage plastic barrels, IBC barrels,
garbage bags, plastic pipes, washing machines, forklift pallets, lead-acid battery casings, etc.

3. Textiles: waste clothes, shoes, fishing nets, woven bags, ton bags, giant bags, fishing net bundles, dust bags, industrial
textile waste, etc.

4. Wood: wooden mattresses, wooden furniture, wooden pallets, waste wood, sawdust particleboards, composite boards, wooden doors, forklift
pallets, wooden boards, wooden templates, wooden boxes, wooden sofas, wooden beds, etc.

5. Paper: Waste paper and cartons, including waste books, carton boards, cartons, packaging boxes, waste newspapers, office paper, printing paper, cardboard, etc.

6. Waste household appliances: TVs, washing machines, refrigerator casings, etc.

7. Pipes: large pipes, pipe fittings, PE pipes, etc.

8. Scrap tires: car tires, truck tires, etc.

9. Various food waste, domestic waste, RDF derivatives, medical waste, garden waste, etc.

This paper shredder is specially designed for shredding various large solid materials, difficult-to-handle materials, waste plastics, plastic films, plastic pipes, fibers, wood, animals and paper that ordinary shredders cannot handle.

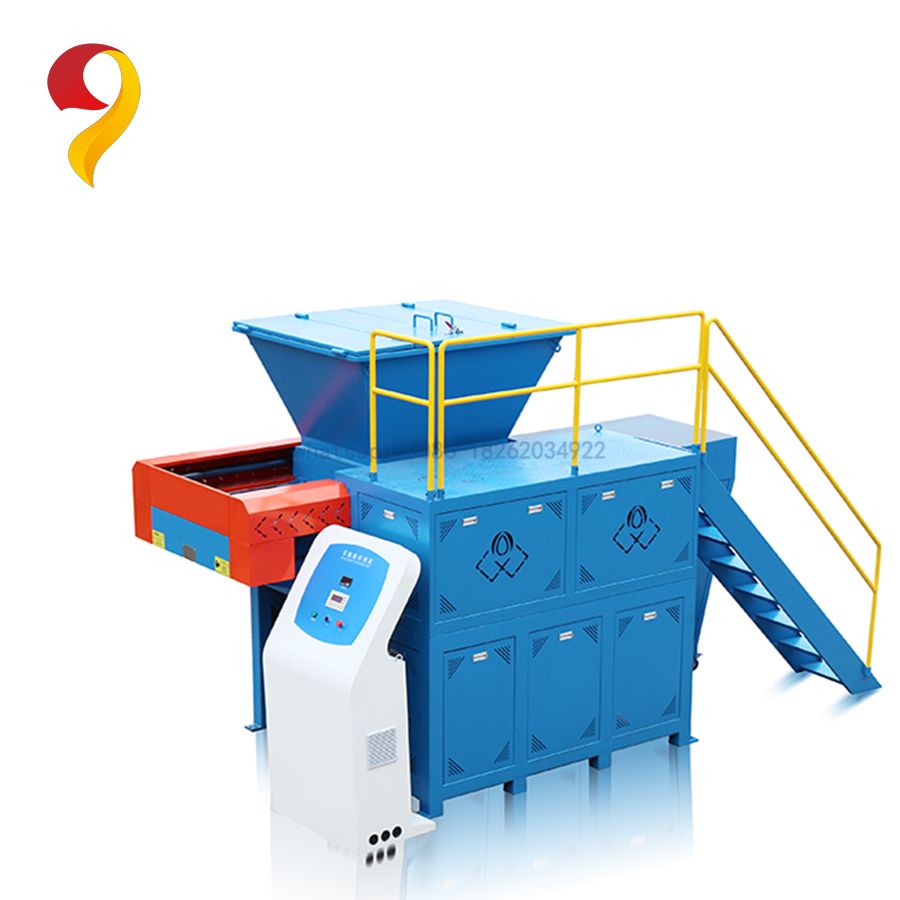

single-shaft shredder  Product Description

single-shaft shredder is specially designed for waste plastic products with small volume and small wall thickness. This series of crushers features tangential feed to eliminate the need for a hydraulic feed system. Outboard bearings and E-type smooth rotors with rotor widths of 600 mm and 800 mm, driven by reducers. The rotor knife is fixed on the rotor by moving the knife holder. The rotor knife uses a square knife with a groove in the middle. The 4 corners of the rotor knife can be used alternately, and each knife can be used 4 times continuously. The ultra-low speed of 60 rpm combined with the compact design of the chopper itself makes it quieter when chopping chunks. Plug and play intelligent control system ensures equipment is ready anytime and anywhere. Compared with other large crushers, the LS series occupies a small area, is flexible in movement, and makes maintenance more convenient and faster.

Single shaft shredders recyclable plastic includes

● Woven bags●Ten bags●Solid plastic blocks●Wood

● Chemical barrel ● Plastic tube ● Plastic pallet

Single shaft shredders Product parameters
