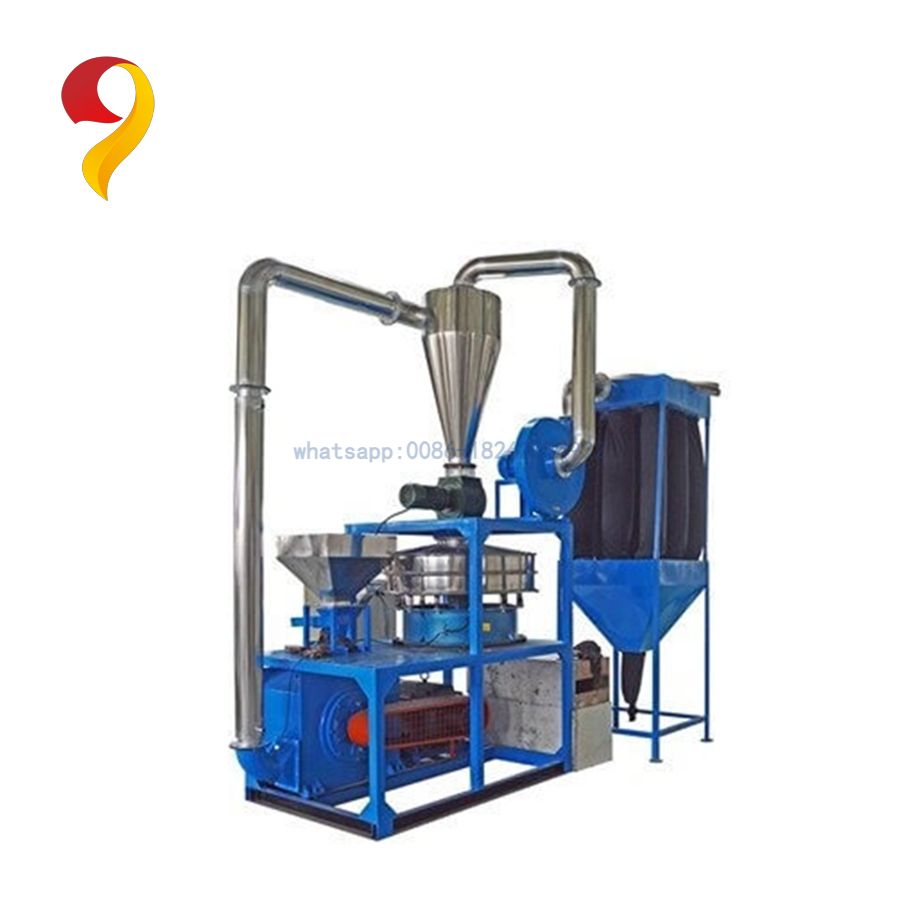

Characteristics of Waste PP PE PVC ABS PC Pet Plastic Pulverizer PVC Pet EVA LDPE Recycling Machine Miller for Powder.
The machine is our latest self-developed grinding mill, its features are as follows:
1.Compared with similar grinders, its output is greatly improved (increased by 20%-50%) under the same power. It is energy-saving.
2.The whole milling process is sealed, without dust leakage, the dust collector is added to effectively reduce dust pollution.
3.The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
4.Full automatic design, automatically feeding, discharging and sorting. The discharging of the main fan reduces labour intensity of operating workers.
5.The door cover of the host can be opened for convenience of maintenance and replacement of cutters.
6.Wind and water cooling system are adopted to decrease the working temperature inside the machine body, so the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics.
Final Powder.
| Model | MF-400 | MF-500 | MF-600 | MF-800 |
| Main Motor Power(kw) | 30 | 37 | 45 | 75 |
| Draft Fan Power(kw) | 3 | 4 | 4 | 5.5 |
| Vibrator Power(kw) | 0.75 | 1.1 | 1.1 | 0.75*2 |
| Feeder Power(kw) | 0.55 | 0.55 | 0.75 | 0.75 |
| Max. Output(kg/h) | 120 | 250 | 350 | 450 |
| Dimensions(mm) | 2200*1500*1600 | 3000*2800*3900 | 3200*3000*4200 | 3500*3200*4500 |
| Weight(kg) | 1100 | 1680 | 2280 | 2880 |
