jiuqiang

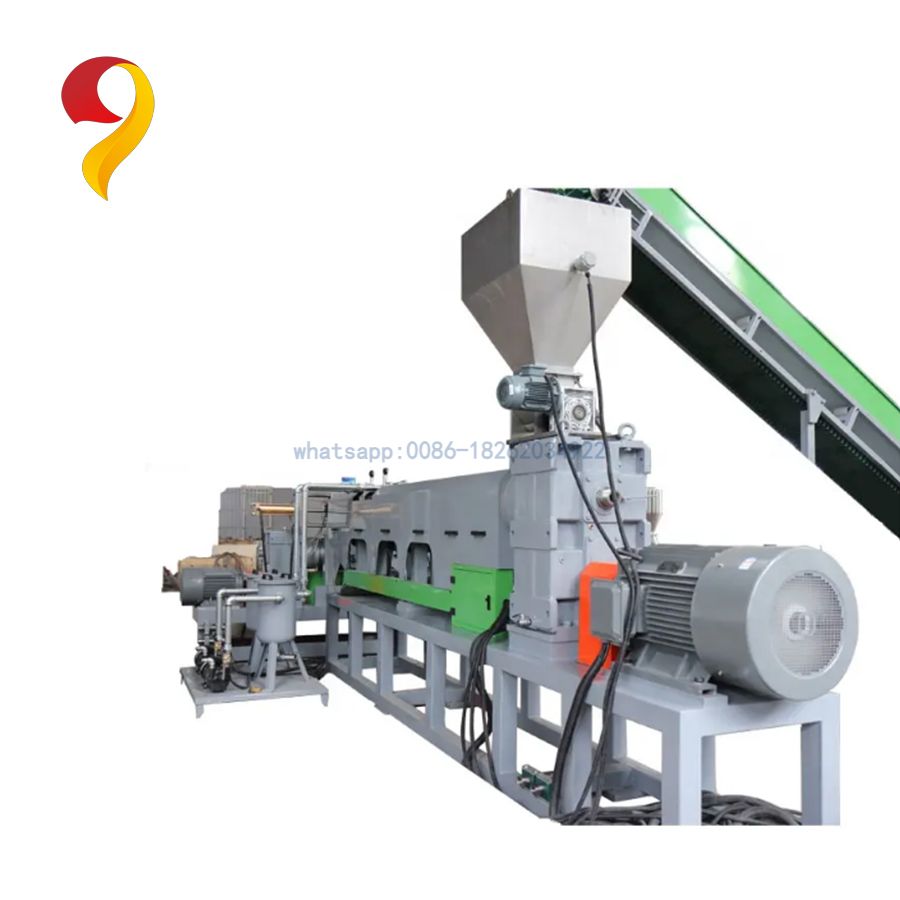

Polyethylene Plastic Pelletizing Machine Line
PP PE series co-rotating twin screw pelletizing machine adopts a random combination structure in assembling elements. It is multi-purpose: by changing the combination of different parts, diversified processing requirements can be met.
Application of raw materials:
PE, PP, BOPP, HDPE, LDPE, LLDPE, ABS, EPE, EPS,XPS, Stretch film, Non woven fabric, Woven bags,etc.
Flow chat of PP/PE plastic granulator:
Water ring granulating:
Conveyor → Film compactor → Single screw extruder → Die head and hydraulic screen changer →Water ring pelletizing → Water tank → Dewatering machine → Vibration sieve → Air blower → Storage silo
Features of PP/PE plastic granulator:
² High efficiency force-feeder ensures high capacity feeding, low energy consumption.
² Extruder of PP/PE film pelletizing line: single stage or double stage pelletizing.
² Pelletizing style: water-ring and water cooling strand cutting with extrusion mould, even cutting ensures good shape.
Main parameters PP/PE plastic granulator:
Extruder | SJ85 | SJ100 | SJ130 | SJ160 |
Screw diameter | 85mm | 100mm | 130mm | 160mm |
Main motor | 55kw | 90kw | 132kw | 160kw |
Compactor power | 37kw | 55kw | 75kw | 90kw |
Capacity | 100-180kg | 200-300kg | 300-400kg | 500-600kg |

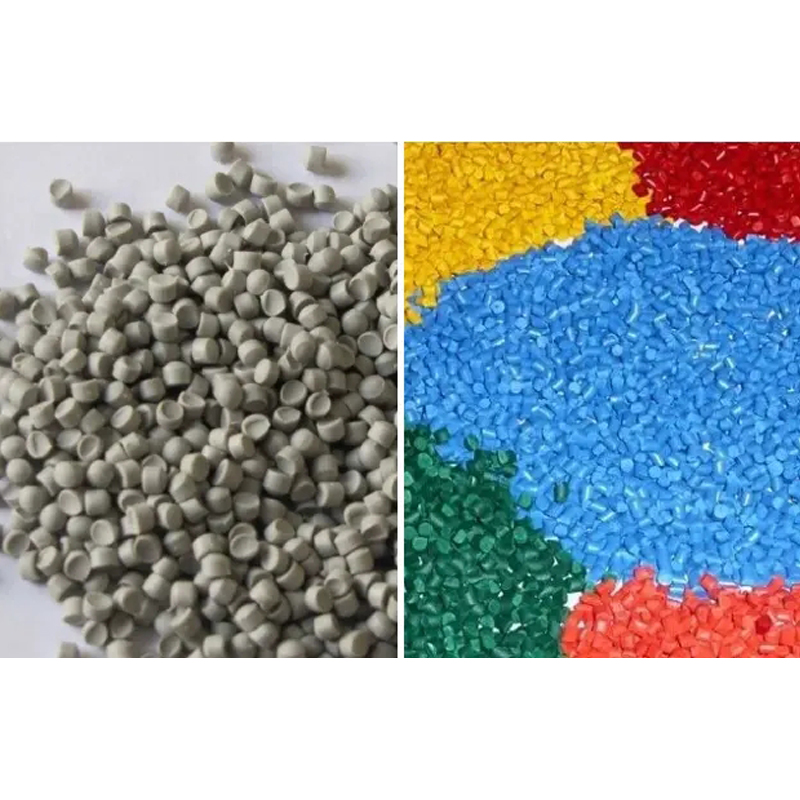

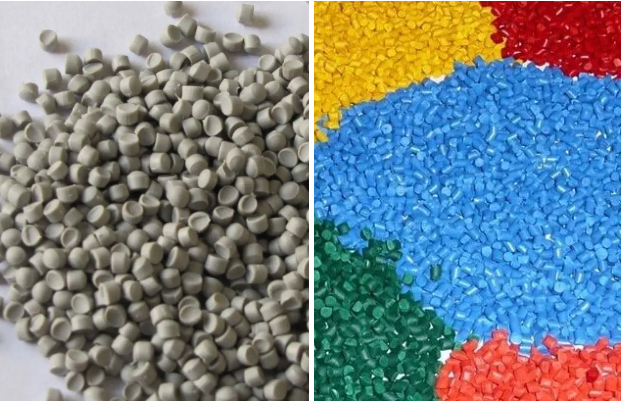

Final product Application：
