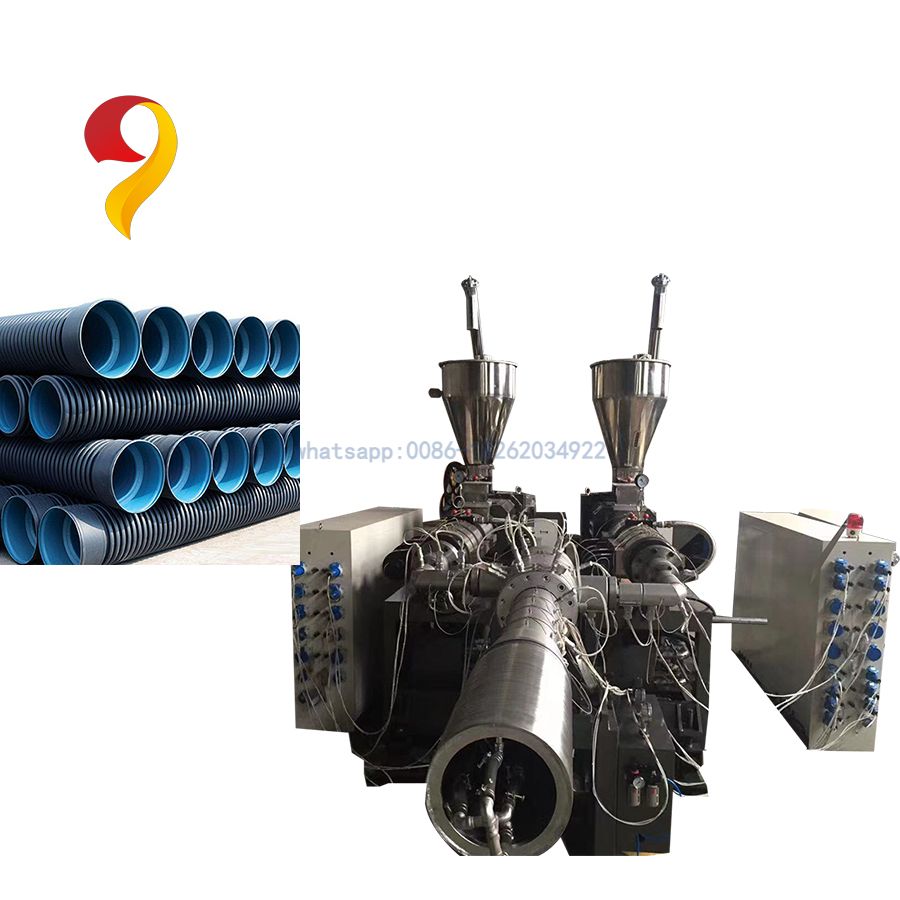

HDPE Corrugated Pipe Extrusion Machine
Extruder
The extruder is a vital part of the machine. It consists of a feed hopper, a screw, and a barrel. HDPE pellets are fed into the hopper. The screw rotates inside the barrel, which has heating elements around it. The screw's rotation transports the material forward while the heat from the barrel melts the HDPE pellets. The length - to - diameter ratio of the screw is an important parameter, usually ranging from 25:1 to 35:1. A longer screw provides more residence time for the material to be thoroughly melted and mixed. For example, a screw with a length - to - diameter ratio of 30:1 can ensure better plasticization of HDPE.
The barrel temperature control is crucial. Different HDPE grades and formulations require specific temperature settings. The typical temperature range for HDPE extrusion is around 180 - 220°C.
Mold and Corrugation System
The mold is designed to shape the extruded HDPE into a corrugated form. It contains a series of cavities and protrusions that give the pipe its characteristic corrugated shape. The corrugation system works in tandem with the mold. It often uses a set of rollers or forming tools to create the corrugations. The rollers have specific profiles to produce corrugations of different shapes and sizes. For instance, to produce a pipe with a sinusoidal - shaped corrugation, the rollers are designed with a sinusoidal profile.
Vacuum Calibration Unit
The vacuum calibration unit is used to precisely size and shape the extruded corrugated pipe. A vacuum is applied to the outer surface of the pipe as it passes through the calibration unit. This helps to draw the pipe against the calibration sleeves, ensuring accurate dimensions and a smooth outer surface. The vacuum also helps to cool the pipe slightly, enhancing its dimensional stability.
Cooling Tanks
After calibration, the pipe enters the cooling tanks. These tanks are usually filled with water or a water - glycol mixture. The cooling process is essential to solidify the HDPE completely. The cooling rate is carefully controlled to prevent warping or distortion of the corrugated structure. The length and number of cooling tanks depend on factors such as the pipe's diameter and production speed. For larger - diameter pipes, more extensive cooling arrangements are generally required.
Traction Unit
The traction unit pulls the corrugated pipe through the production process at a constant speed. It typically consists of pairs of rollers with a high - friction surface, such as rubber - coated rollers. The traction force can be adjusted to match the extrusion speed. This ensures a smooth and continuous production process and prevents the pipe from slipping during traction.
Cutting Device
The cutting device is used to cut the continuous corrugated pipe into the desired lengths. It can be a mechanical saw - type cutter or a hot - wire cutter. The cutting operation is controlled by a length - measuring sensor or a programmable logic controller. For example, if the desired pipe length is 6 meters, the cutting device will activate when the pipe reaches that length.
Extrusion Capacity
The extrusion capacity of the machine is usually measured in kilograms per hour (kg/h). It can vary from a few tens of kilograms per hour for small - scale machines to several hundred kilograms per hour for large - scale industrial models. For example, a medium - sized HDPE corrugated pipe extrusion machine may have an extrusion capacity of around 120 - 180 kg/h.

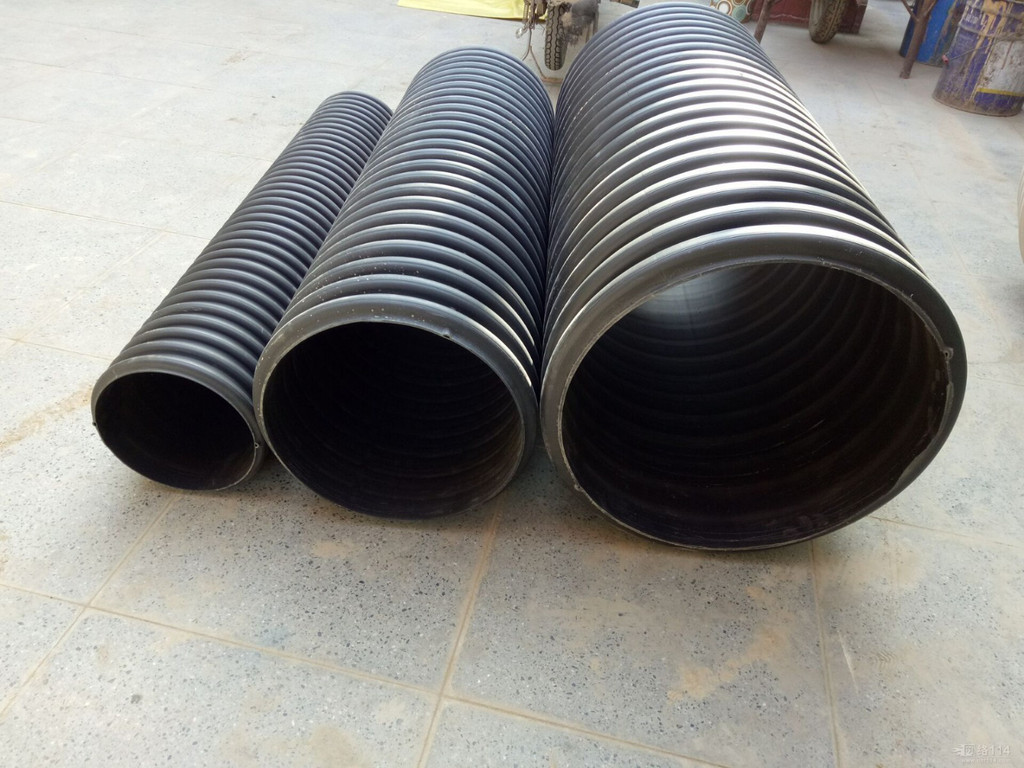

Pipe Diameter Range
The machine can produce pipes with a wide range of diameters. The minimum diameter can be as small as 50 mm, and the maximum diameter can reach up to 1000 mm or more, depending on the machine's design and capabilities.
Corrugation Pitch and Depth
The corrugation pitch (the distance between two adjacent corrugations) and depth can be adjusted according to the specific requirements of the application. The pitch can range from a few millimeters to several centimeters, and the depth can vary from a few millimeters to more than a centimeter. For example, in a drainage application, the corrugation pitch may be around 30 - 50 mm and the depth around 5 - 10 mm.
Production Speed
The production speed is measured in meters per minute (m/min). It can range from a slow speed of about 1 - 2 m/min for pipes with complex corrugation patterns or large diameters to a relatively fast speed of 10 - 15 m/min for simpler corrugation and smaller - diameter pipes.
Advantages
High Strength: HDPE corrugated pipes have high - density polyethylene material, which gives them excellent strength and durability. They can withstand high internal and external pressures.
Corrosion Resistance: They are highly resistant to corrosion from chemicals, acids, and alkalis, making them suitable for use in harsh chemical environments such as sewage systems.
Flexibility: The corrugated structure provides good flexibility, allowing the pipes to be laid in curved or uneven terrains without the need for additional fittings.
Long Service Life: Due to their robust material properties and resistance to environmental factors, HDPE corrugated pipes have a long service life, reducing the need for frequent replacements.
Applications
Drainage and Sewer Systems: HDPE corrugated pipes are widely used in urban and rural drainage and sewer systems. Their large - diameter versions can handle a high volume of wastewater and rainwater.
Cable Protection: They are used to protect power cables, communication cables, and other utility cables. The corrugated outer surface provides mechanical protection against external impacts.
Irrigation and Land Drainage: In agricultural and landscaping applications, these pipes are used for irrigation and land drainage. Their flexibility and durability make them ideal for such uses.
